Benchtop X-Ray Microscopy
for NDT and CT
Top View Type Microfocus X-ray Inspection System
Data Sheet

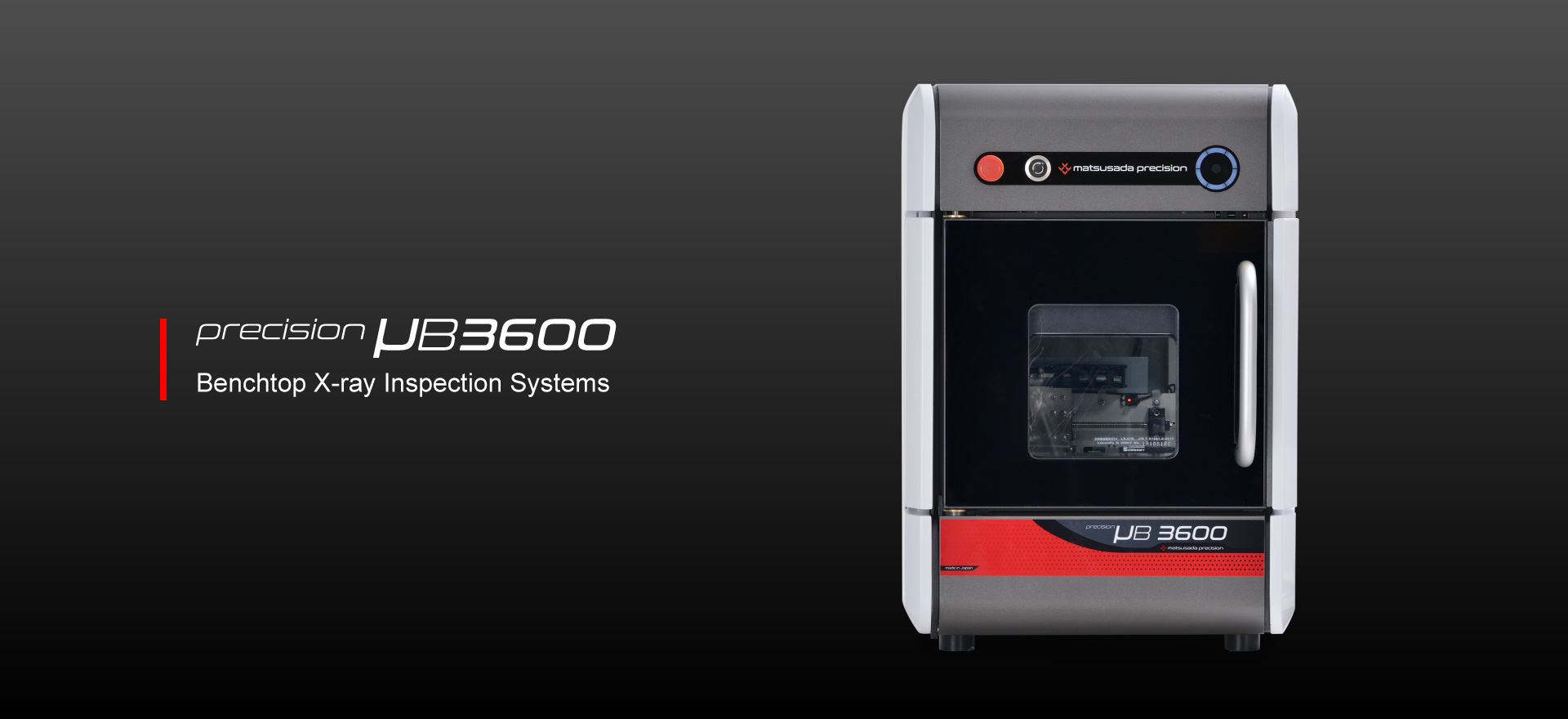

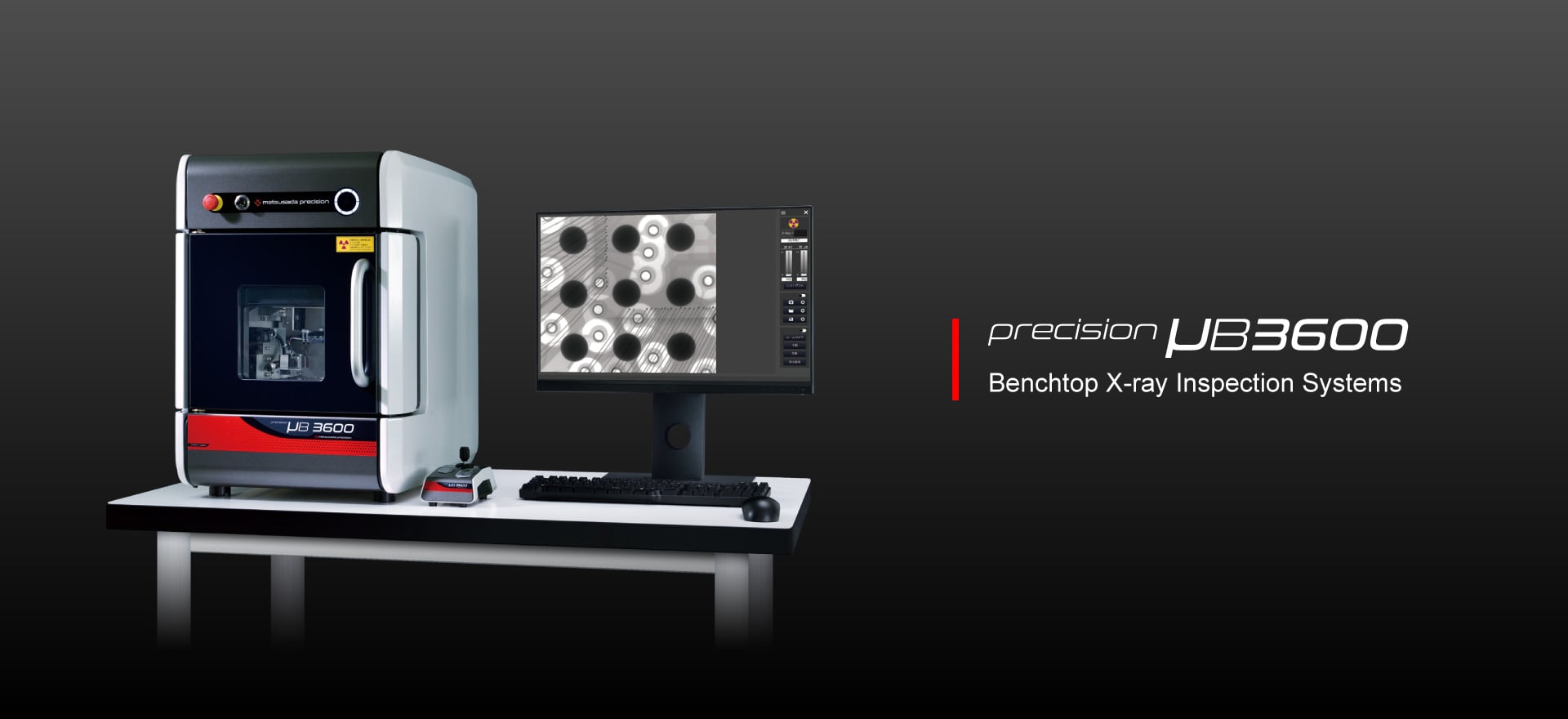

Benchtop with High Magnification

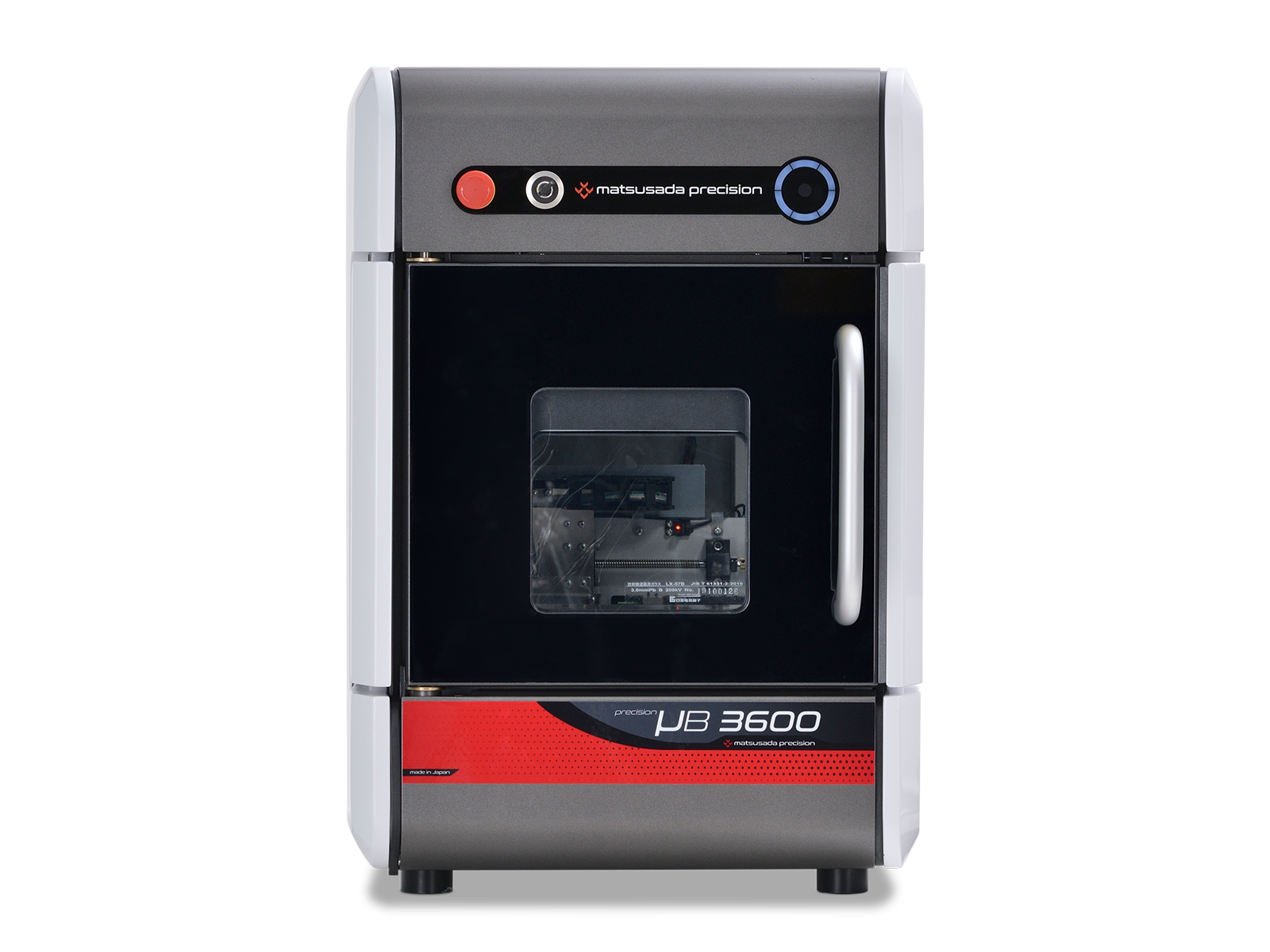

The μB3600 offers ultimate image resolution and performance with the industry's high level of magnification based on Matsusada's superior mechanical engineering design.
There is no need to install a large and stationary-type X-ray inspection system for high magnification observations. With its compact design, the precision μB3600 X-ray inspection system provides high performance and magnification equivalent to ones of an existing stationary type system. It comes with an advanced high-voltage power supply and the X-ray tube developed by Matsusada Precision, which is Japan's leading provider of high-voltage power supply devices.
Equipment size W: 455 mm x D: 625 mm x H: 630 mm
Compact and Powerful
The X-ray tube developed by Matsusada enables you to obtain a high-quality vision of X-ray output.
It used to be a large and high power-vision system required for objects containing metals that are difficult to vision, even small, palm-sized objects. The precision μB3600 desktop employs a dedicated high-voltage power supply and a proprietary X-ray tube to offer a high power of 90 kV. There is no longer such huge, space-consuming equipment.
Top Class Image Resolution
We upgraded the precision μB3600 X-ray inspection system with advanced features of the high-resolution 1.5-mega pixel camera, the latest image processing technology, and the proprietary X-ray tube to provide unprecedented image quality.
With a combination of the high-resolution camera (14-bit), X-ray tube developed by Mastusada, and the latest image processing function s-HDR, the precision μb3600 enables you to obtain high-quality images with a wide dynamic range. This allows for inspection and fault analysis improvement.

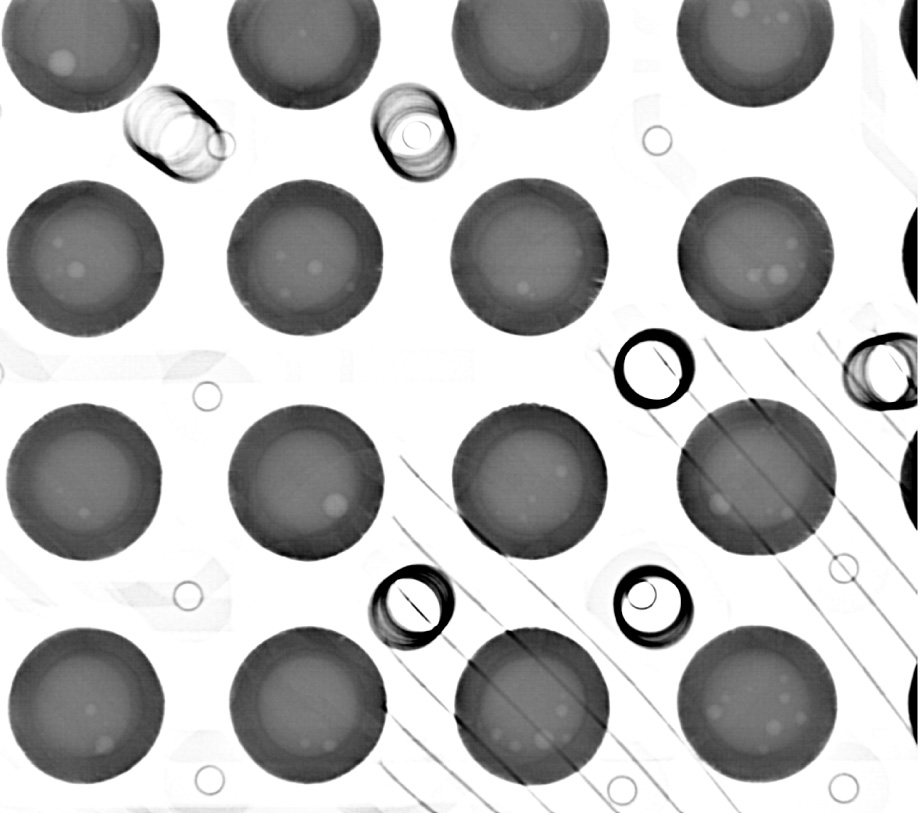

X-ray tube voltage: 90 kV, X-ray tube current: 150 μA, Monitor image magnification: 133.3x
Lithium-ion battery
X-ray tube voltage: 90 kV, X-ray tube current: 150 μA, Monitor image magnification: 132.1x
-
Large Field of View Available
Expanded field of view (X: 58 mm and Y: 50 mm) can be supported with the height adjustment stage (sold separately).
-

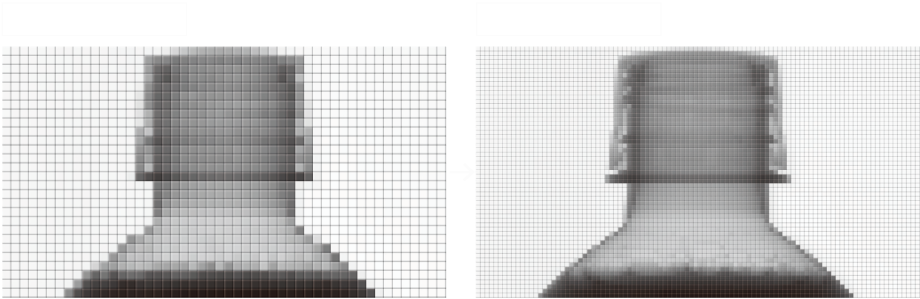

High resolution detector
Equipped with a 1.5-mega pixel detector, the precision μB3600 enables you to achieve clear images with high resolution.
-

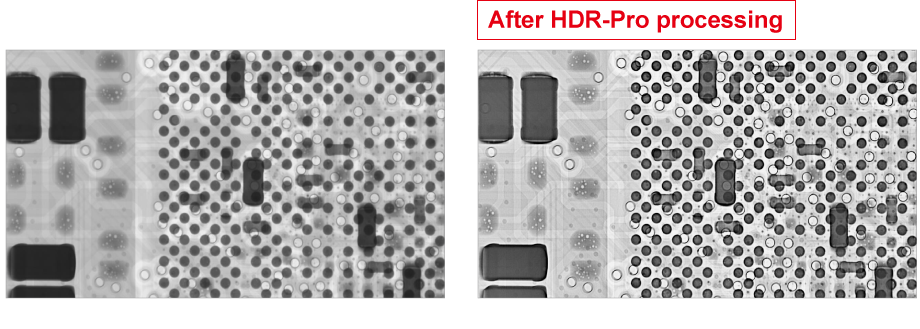

New s-HDR image processing with high dynamic range of radiography
The radiographic images produced in s-HDR are available with wide and dynamic ranges. The s-HDR allows for a clear display without sacrificing the tones in the white or black areas.
-
High-quality X-ray tube developed by Matsusada
The X-ray tube in conjunction with the advanced high-voltage power supply developed by Matsusada provide the best solution for noise suppression and high quality X-ray source. In addition, Matsusada, the high-voltage power supply manufacturer, focuses on developing new technologies and successfully designing smaller sizes of high-voltage power supplies and the X-ray system.
X-ray Image Galleries
-

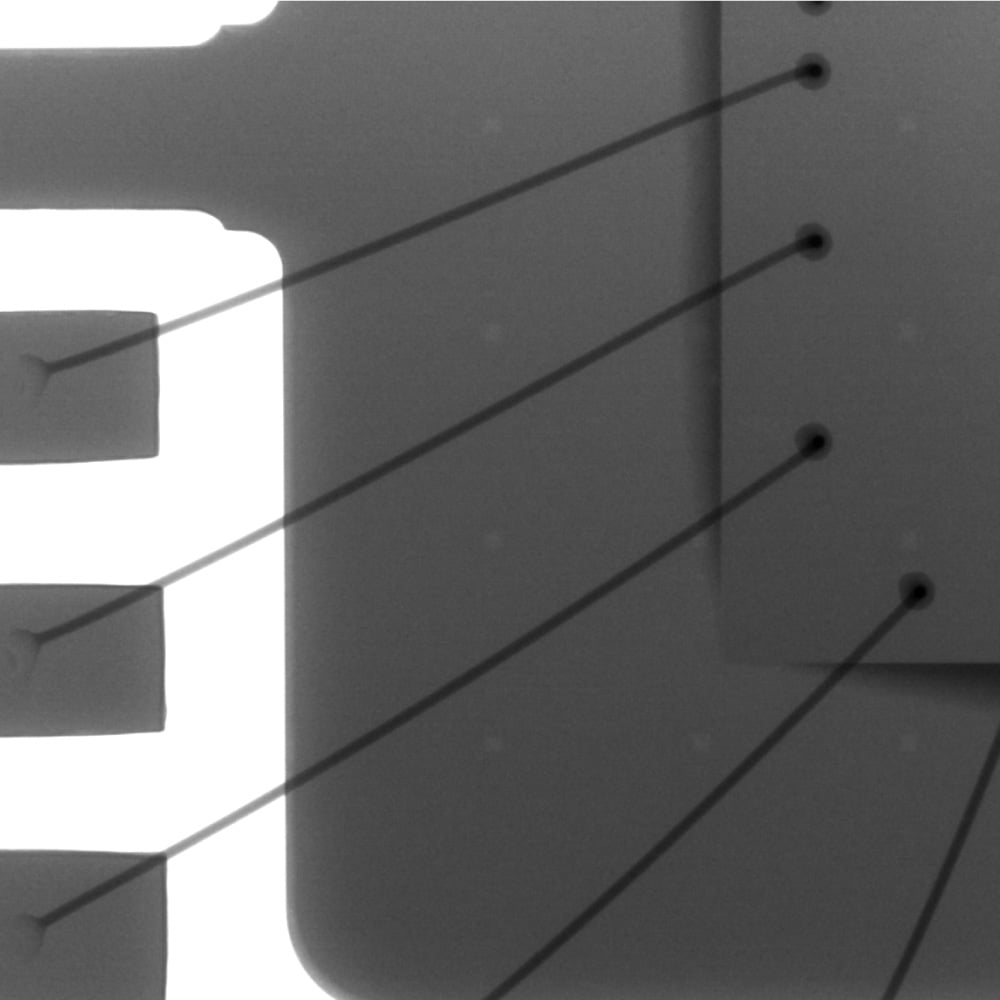

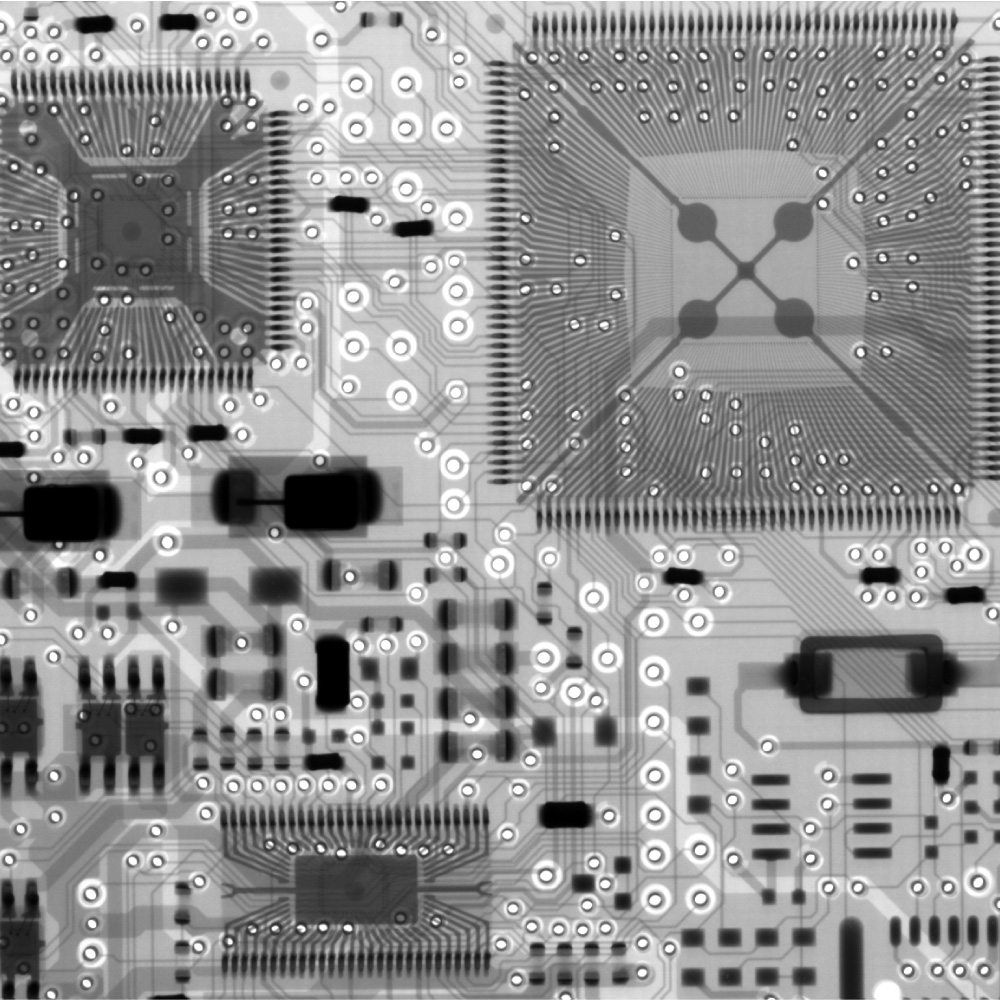

Probe pin
X-ray tube voltage: 90 kV, X-ray tube current: 150 μA, Monitor image magnification: 136x -
Wire bonding
X-ray tube voltage: 90 kV, X-ray tube current: 150 μA, Monitor image magnification: 136x -

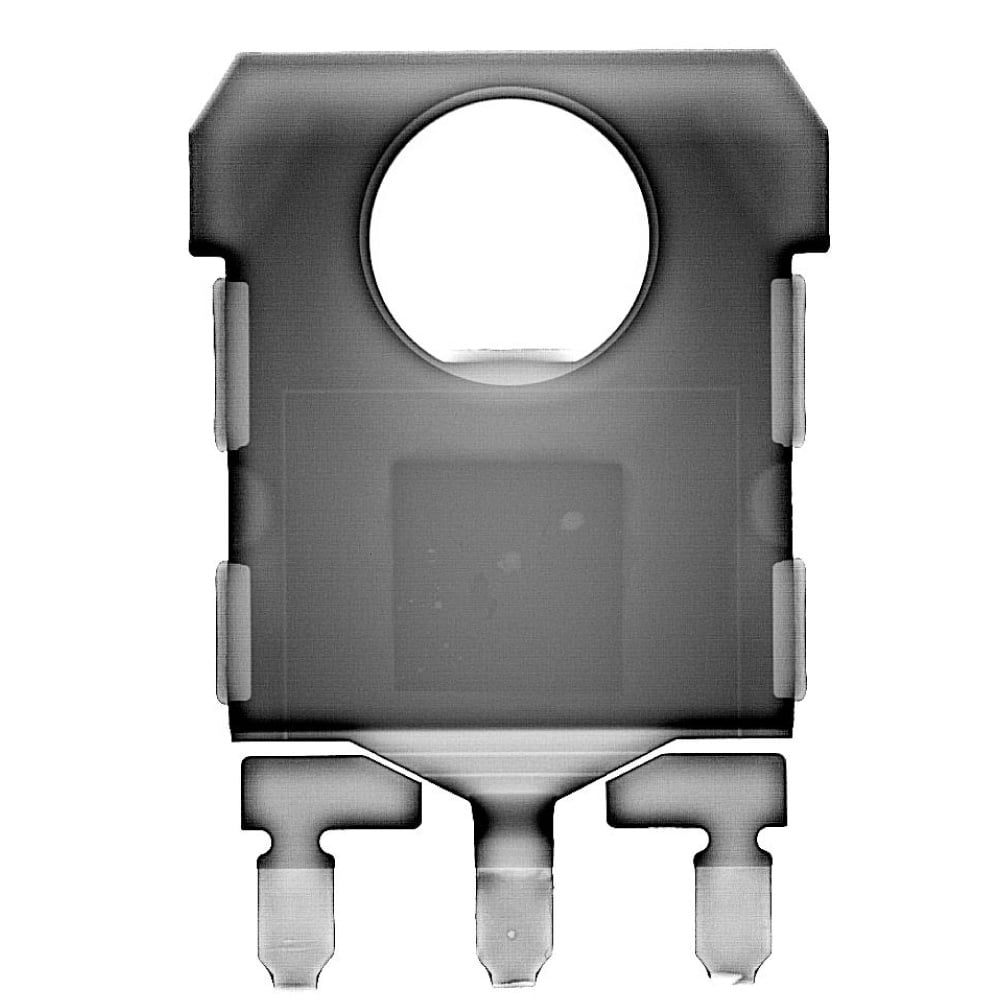

IGBT Void
X-ray tube voltage: 90 kV, X-ray tube current: 150 μA, Monitor image magnification: 9.0x -

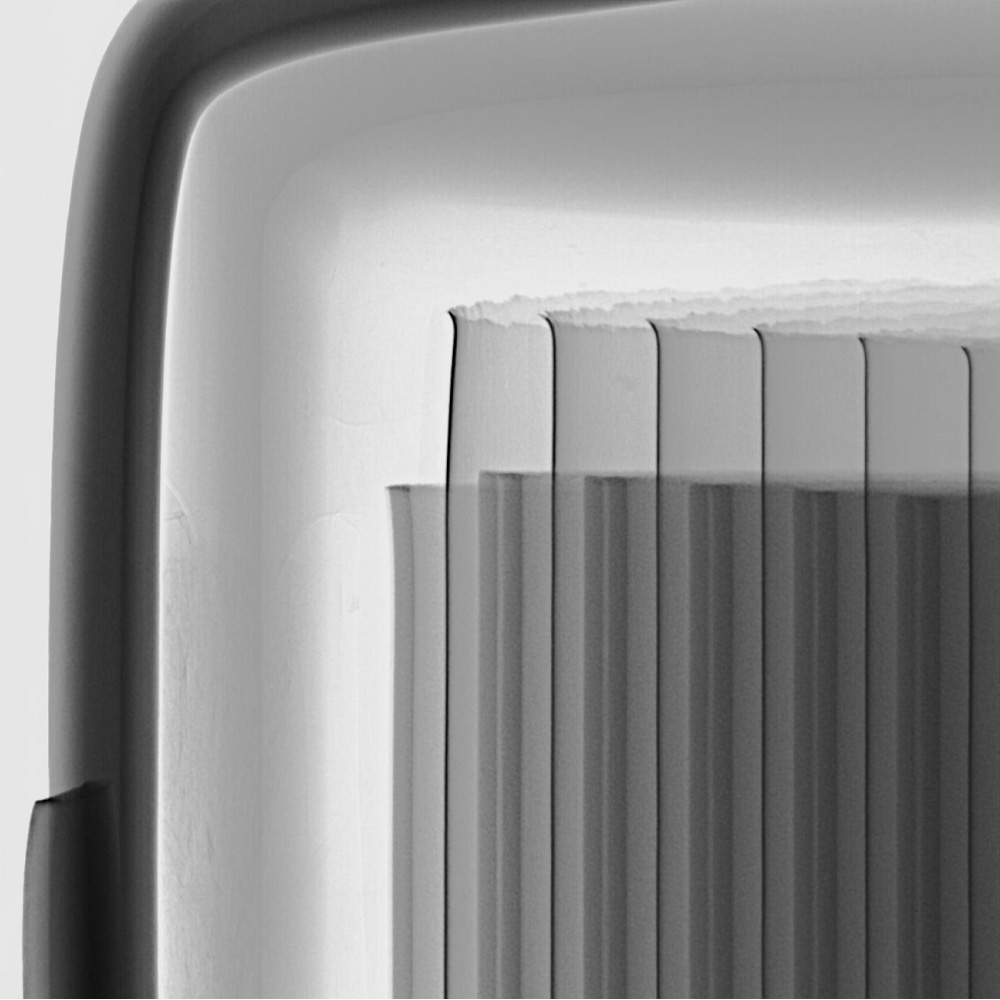

Shrinkage cavity in casting
X-ray tube voltage: 90 kV, X-ray tube current: 150 μA, Monitor image magnification: 9.0x
For details, download the datasheet.
