Interface Adapters (Digital Communication) CO/USB series

  • CO/USB series | Digital controllers | Matsusada Precision
  • CO/USB series | Digital controllers | Matsusada Precision

DIGITAL CONTROLLER/
DIGITAL INTERFACE ADAPTER

Supports USB, LAN, RS-232C, RS-485, and GPIB

  • Resolution: 16-bit (1/65535)
  • Isolation: Fiber optic cable
  • CE marking
    (For some models)

Controlled by various interfaces

The CO/USB series is a line of digital interface adapters controlled by a computer, laptop, or programmable logic controller (PLC) for Matsusada Precision's DC power supplies, high voltage power supplies, AC power supplies, bipolar power supplies, and electronic loads. These products are ideal for enabling multifunctional and high-precision automatic inspection systems, 24/7 production lines, and various system equipment using power supply devices.

The interface adapters enable automation and labor-saving in manufacturing processes, accelerate research and development, and also contribute to improving safety and reliability. In addition to high-resolution 16-bit (1/65535) control, it is equipped with various functions such as readback and status, making it suitable for various applications such as R&D that require high accuracy, quality testing that requires constant monitoring of power supply status and manufacturing processes.

Optical isolation adapters, such as USB-OPT, CO-E32, CO-OPT2-9, etc., utilize fiber optic cables for digital communication, which enables extremely reliable communication even in noisy environments such as in factories and for long-distance control. By using optical fibers, they are electrically isolated, so safe operation is possible even in power supply configurations with potential differences. In addition, all models are designed to be ultra-compact, palm-sized, and can be installed anywhere. By using them in combination with Matsusada Precision's compact and lightweight power supplies and electronic loads, you can further take advantage of their space-saving features.

FEATURES AND BENEFITS

  • Supports LAN and USB interface Also supports RS-232C, RS-485, and GPIB
  • High resolution: 16-bit (1/65535)
  • Full isolation: Fiber optic cable (optical link only)
  • Various functions: Computer control, Read back, and Status
  • Ultra-compact, placed anywhere
  • Remote control from a programmable logic control (PLC)
  • CE marking approved (low voltage directive)
    The product is designed to be installed in the customer’s system and so as to meet the requirements of CE marking regarding chassis mounting, noise control, proper protections, and isolated devices. It is not designed to perform alone.

We also have a lineup of dedicated software, "PSS2", which enables sequence operation of various power supplies and CO/USB series manufactured by Matsusada Precision Inc. with a simple setup.

Detailed datasheet of PSS2en is available. Please feel free to contact us.

Models

OPTICAL ISOLATION ADAPTER

With optical communication, isolation control is performed. As complete isolation is provided by optical fiber, it can protect the unit against transients caused by surges, inductive lightning, external noise, etc.

  • Extremely safe operation is possible since there is no upper limit to the breakdown voltage theoretically.
  • Stable communication is possible even in an overly noise environment.
Example of communication with optical fiber
TB series is connected to USB-OPT with optical communication.
Models Interface Supported models Safety standards
CO-E32 LAN Supported model list CE mark
USB-OPT USB Supported model list -
CO-OPT2-9 RS-232C Supported model list -
CO-OPT2-25 RS-232C Supported model list -
CO-OPT4-25 RS-485 Supported model list -
CO-G32 GPIB Supported model list CE mark

The optical adapter use is recommended under the following environment.

  • Noisy environments such as factories (Example: Motors or coils are used near power supplies and loads)
  • When there is a possibility of arcing or output short circuit.

DIGITAL COMMUNICATION ADAPTER

DIGITAL CONVERTER FOR ANALOG POWER SUPPLIES

This digital conversion adapter provides a digital control system for high-voltage power supplies that only have analog control.
Digital communication is based on optical communication with high isolation performance, so it can be used for control over long distances.

Example of communication with a digital adapter
Connect PC to AU series with CO-HV | Matsusada Precision
Models Supported models Safety standards
CO-HV Supported model list CE mark

Optional program SWEEP CONTROL

The program is used to gradually change the output of DC power supplies and high voltage power supplies that can be controlled by our power supply digital controller CO/USB series.

Models Supported models Safety standards
Sweep control program for CO/USB series Supported model list -

Discontinued models

The following model is no longer available as we have stopped production and sales.

Models Supported models
CO-RG RGJ series
CO-RG-LH RGJ series

Specifications

OPTICAL ISOLATION ADAPTER

LAN-adapter for optical communication CO-E32

This adapter is for control of several power supplies with LAN.
Up to 32 units in total can be connected to one CO-E32.

CE marking
CO-E32 image | Matsusada Precision
Example of connecting
Connect to CO-E32 with LAN | Matsusada Precision
Supported models
Can be used to connect directly Models with optical interface option, -LGob
Can be used via CO-HV AU, AUH, AK, AKP, XPg, XKg, AE, ES, W, WA, K12-R, XR series

How to order

When ordering, add "-CE" to Model No.
Example: CO-E32-CE

For details, download the datasheet below.


USB adapter for optical communication USB-OPT

This adapter is for controlling several power supplies with USB.
Up to 32 units in total can be connected to one USB-OPT.

USB-OPT
Example of connecting
Connect to USB-OPT with USB | Matsusada Precision
Supported models
Can be used to connect directly Models with optical interface option, -LGob
Can be used via CO-HV AU, AUH, AK, AKP, XPg, XKg, AE, ES, W, WA, K12-R, XR series

For details, download the datasheet below.


RS-232C adapter for optical communication CO-OPT2-9/CO-OPT2-25

This adapter is for control of several power supplies with RS-232C.
Up to 32 units in total can be connected to one CO-OPT2-9/CO-OPT2-25.

CO-OPT2-9
CO-OPT2-9 image | Matsusada Precision
CO-OPT2-25
CO-OPT2-25 image | Matsusada Precision
Example of connecting
Connect to CO-OPT2-9 or CO-OPT2-25 with RS-232C | Matsusada Precision
Supported models
Can be used to connect directly Models with optical interface option, -LGob
Can be used via CO-HV AU, AUH, AK, AKP, XPg, XKg, AE, ES, W, WA, K12-R, XR series

Options

-L(#4)

inch screws of D-sub fixing screws (#4)
Applicable to CO-OPT2-25

How to order

Add Option No. to Model No. in alphabetical order.
Example: CO-OPT2-25-L(#4)

For details, download the datasheet below.


RS-485 adapter for optical communication CO-OPT4-25

This adapter is for control of several power supplies with RS-485.
Up to 32 units in total can be connected to one CO-OPT4-25.

RS-485 image | Matsusada Precision

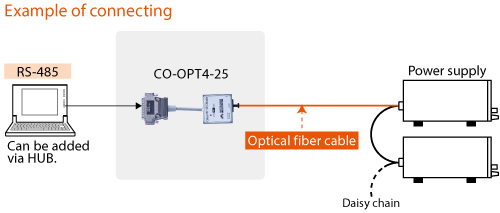

Example of connecting
Up to 32 units in total can be connected to one RS-485. | Matsusada Precision
Supported models
Can be used to connect directly Models with optical interface option, -LGob
Can be used via CO-HV AU, AUH, AK, AKP, XPg, XKg, AE, ES, W, WA, K12-R, XR series

Options

-L(#4)

inch screws of D-sub fixing screws (#4)

How to order

Add Option No. to Model No. in alphabetical order.
Example: CO-OPT2-25-L(#4)

For details, download the datasheet below.


GPIB adapter for optical communication CO-G32 (Discontinued in December 2028)

This adapter is for control of several power supplies with GPIB.
A total of 32 units can be connected to one CO-G32.

CE marking

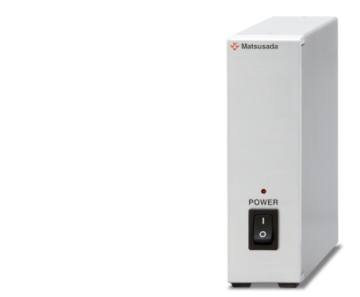

CO-G32 image | Matsusada Precision
Example of connecting
Total 32 units can be connected to one CO-G32 | Matsusada Precision
Supported models
Can be used to connect directly Models with optical interface option, -LGob
Can be used via CO-HV AU, AUH, AK, AKP, XPg, XKg, AE, ES, W, WA, K12-R, XR series

How to order

When ordering, add "-CE" to Model No.
Example: CO-G32-CE

For details, download the datasheet below.


DIGITAL COMMUNICATION ADAPTER

LAN adapter for digital communication CO-E32m

This adapter is for control of several power supplies with LAN.
A total of 16 units can be connected to one CO-E32m.

CE marking
CO-E32m image | Matsusada Precision
Example of connecting
CO-E32m | Matsusada Precision
Supported models
This communication adapter supports the following products
with Matsusada Precision's original digital communication port
R4K-36, R4K-80, RK, RKT, TB, REK/REKJ, PVCE, EGD, EGS, EHD, EZD, series
The following products are available to select -LGmb option with the adapter. R4G, R4GT, RK-80, P4KF-80, CD, CDPU, DRS series

How to order

When ordering, add "-CE" to Model No.
Example: CO-E32m-CE

For details, download the datasheet below.


Adapter for connecting USB to digital interface, CO-U32m

This adapter is for controlling several power supplies with USB.
Up to 16 units in total can be connected to one CO-U32m.

CE marking
CO-U32m image | Matsusada Precision
Example of connecting
Up to 16 units in total can be connected to one CO-U32m | Matsusada Precision
Supported models
This communication adapter supports the following products
with Matsusada Precision's original digital communication port
R4K-36, R4K-80, RK, RKT, TB, REK/REKJ, PVCE, EGD, EGS, EHD, EZD, series
The following products are available to select -LGmb option with the adapter. R4G, R4GT, RK-80, P4KF-80, CD, CDPU, DRS series

How to order

When ordering, add "-CE" to Model No.
Example: CO-U32m-CE

For details, download the datasheet below.


RS-232C adapter for digital communication CO-MET2-9/CO-MET2-25

This adapter is for control of several power supplies with RS-232C.
Up to 16 units in total can be connected to one CO-MET2-9/CO-MET2-25.

CO-MET2-9
CO-MET2-9 image | Matsusada Precision
CO-MET2-25
CO-MET2-25 image | Matsusada Precision
Example of connecting
Up to 16 units in total can be connected to one CO-MET2-9/CO-MET2-25 | Matsusada Precision
Supported models
This communication adapter supports the following products
with Matsusada Precision's original digital communication port
R4K-36, R4K-80, RK, RKT, TB, REK/REKJ, PVCE, EGD, EGS, EHD, EZD, series
The following products are available to select -LGmb option with the adapter. R4G, R4GT, RK-80, P4KF-80, CD, CDPU, DRS series

For details, download the datasheet below.


RS-485 adapter digital communication CO-MET4-25

This adapter is for control of several power supplies with RS-485.
Up to 16 units in total can be connected to one CO-MET4-25.

CO-MET4-25 | Matsusada Precision
Example of connecting
Up to 16 units in total can be connected to one CO-MET4-25 | Matsusada Precision
Supported models
This communication adapter supports the following products
with Matsusada Precision's original digital communication port
R4K-36, R4K-80, RK, RKT, TB, REK/REKJ, PVCE, EGD, EGS, EHD, EZD, series
The following products are available to select -LGmb option with the adapter. R4G, R4GT, RK-80, P4KF-80, CD, CDPU, DRS series

Options

-L(#4)

inch screws of D-sub fixing screws (#4)

How to order

Add Option No. to Model No. in alphabetical order.
Example: CO-MET4-25-L(#4)

For details, download the datasheet below.


GPIB adapter for digital communication CO-G32m (Discontinued in December 2028)

This adapter is for control of several power supplies with GPIB.
Up to 16 units in total can be connected to one CO-G32m.

CE marking
CO-G32m image | Matsusada Precision
Example of connecting
Up to 16 units in total can be connected to one CO-G32m | Matsusada Precision
Supported models
This communication adapter supports the following products
with Matsusada Precision's original digital communication port
R4K-36, R4K-80, RK, RKT, TB, REK/REKJ, PVCE, EGD, EGS, EHD, EZD, series
The following products are available to select -LGmb option with the adapter. R4G, R4GT, RK-80, P4KF-80, CD, CDPU, DRS series

How to order

When ordering, add "-CE" to Model No.
Example: CO-G32m-CE

For details, download the datasheet below.


DIGITAL CONVERTER FOR ANALOG POWER SUPPLIES

for Analog high voltage power supplies CO-HV

This adapter is the ideal system for use when "There is the distance between high voltage power supply and computer, used under noisy environment", "Connect Low voltage power supply units".

Digital adapter CO-HV image | Matsusada Precision
Example of connecting
Connect PC to High Voltage power supply with digital adapter
Supported models

AU, AUH, AK, AKP, XPg, XKg, AE, ES, W, WA, K12-R, XR series

Options

-L(Fc0.5)

Change length optical fiber cable to 0.5 meters

-L(Fc5)

Change length optical fiber cable to 5 meters

-L(Fc10)
Change length optical fiber cable to 10 meters

-L(Fc20)
Change length optical fiber cable to 20 meters

-L(Fc40)
Change length optical fiber cable to 40 meters

How to order

For no options

When ordering, add the dedicated control cable name to Model No.
Example: CO-HV(with CO-AU cable)


For options

When ordering, add Option No. to the Model No in alphabetical order, and finally the dedicated control cable.
Example: CO-HV-L(Fc10)(with CO-AU cable)


For CE marking

When ordering, add the dedicated control cable name to the Model No, and finally "-CE".
Example: CO-HV(with CO-AU cable) -CE


For CE marking with options

When ordering, add Option No. to the Model No. in alphabetical order, and finally the dedicated control cable name and “-CE”.
Example: CO-HV-L(Fc10)(with CO-AU cable) -CE

For details, download the datasheet below.


Optional program SWEEP CONTRO

Sweep control program | Matsusada Precision

This program is used to gradually change the output of DC power supplies and high voltage power supplies that can be controlled by our power supply digital controller CO-HV series. Any settings are provided for the voltage/current values when the output starts and reaches, and after the output starts. Following that, the output is activated accordingly.

It is very convenient for such applications like transformation process of the capacitor, aging of electronic components and burn-in testing of semi-conductor etc. where it is necessary to repeat the output by changing the output gently and a decided pattern.

Features and Benefits

  • Fine setting of output voltage and output current is available by high-resolution 16-bit.
  • Each voltage value and each current value can be set individually.
  • LAN, USB, RS-232C, RS-485 and GPIB communication are available.

Available models

  • CO-HV (High Voltage power supply digital controller)

How to order

To order, add "(s)" after the available Model No.
Example: CO-HV(s) (with CO-AU cable)

For details, download the datasheet below.

Dimensions

For details, download the datasheet below.

Download

If you are unable to download a file

Please try the following solution.

  1. Please press Ctrl+F5 to clear the cache of your web browser and try again.
  2. Please restart your web browser and log in again to try again.
  3. Please change your web browser to another browser and try again.
  4. Restart the computer and try again.
  5. Please try again on a different computer.

Login Required

In this website, we provide only the latest version of information including instruction manuals as of our products. Therefore, the newest versions of manuals on the website might be not same as the ones of products you purchased in the past.

Products to be used in combination

Software/Adapter/Accessories

Search for related to Software/Adapter/Accessories
