Are you curious about PLC control systems and unsure where to begin?
Programmable Logic Controllers (PLCs) are automated control systems widely used in manufacturing facilities and various industrial settings. By implementing PLC systems, you can achieve efficient power management and early fault detection.
In this article, we'll explore everything from PLC fundamentals to real-world examples of DC power supply control.
Whether you're new to PLCs or looking to integrate them into your professional work, this comprehensive guide has something for you.
Understanding PLC Fundamentals
PLCs are crucial control systems that play an integral role in many aspects of daily life.
Let's dive into what a PLC is and how it functions.
What is a PLC?
A PLC, or Programmable Logic Controller, is an industrial computer system designed to automate the control of equipment in various settings, including manufacturing facilities, hospitals, and commercial buildings.
In Japan, these devices are commonly known as "sequencers" (a term popularized by Mitsubishi Electric), and they are extensively used to control:
- Factory automation (FA) systems (robots and conveyor belts)
- Wastewater treatment equipment (pumps and motorized valves)
- Amusement park attractions
- Infrastructure systems (traffic lights and elevators)
The key feature of PLCs is their ability to control operations through programmed sequences, such as the following:

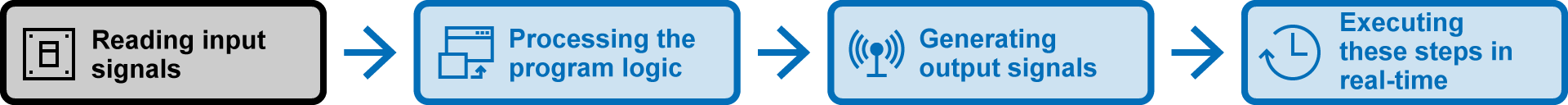

PLCs operate by receiving input signals from sensors and switches, processing them according to preprogrammed logic, and generating output signals in a continuous, real-time control loop.

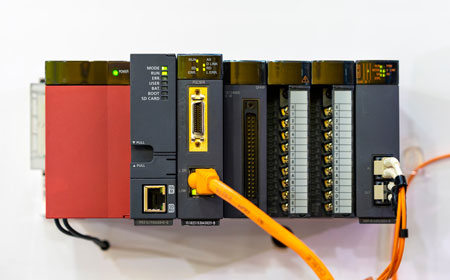

PLC Configuration
A PLC system consists of five essential components:
- 1. Base Unit
- 2. Power Supply Unit
- 3. CPU Unit
- 4. Input Unit
- 5. Output Unit
Let's examine each component in detail.
1. Base Unit
The base unit serves as the mounting platform for all other PLC components, including the power supply, CPU, and I/O modules.
| Type | Application |
|---|---|
| Main Base Unit | Supports standard system configurations |
| Expansion Base Unit | Enables system scalability and add-on modules |
| Advanced Base Unit | Handles complex control systems and large-scale applications |
2. Power Supply Unit
The power supply unit provides electrical power to all PLC components. It converts standard AC input power into the appropriate DC voltage levels required by the system's internal circuits.
3. CPU Unit
The central processing unit (CPU) functions as the PLC's brain. It executes the control program, processes input signals, and determines the appropriate output signals based on the programmed logic.
4. Input Units
Input units serve as the interface between field devices (such as sensors and switches) and the PLC's CPU. These units handle both digital signals (ON/OFF) and analog inputs (continuous values like temperature and pressure), converting them into digital formats that the PLC's CPU can process.
5. Output Unit
The output unit translates CPU control signals into appropriate electrical outputs that operate field devices. It manages a wide range of industrial equipment, including electric motors, servo drives, and actuators for motion control applications.
PLC-Based DC Power Supply Control Systems
PLC-based DC power control is an automated management system designed for variable power supplies in industrial equipment and machinery.
The system regulates equipment operation by controlling power states, voltage levels, and current output, enabling precise power management and improved operational safety.
Overview
Power supply systems are the backbone of modern industrial and infrastructure operations, where precise control and continuous operation are essential. With the increasing miniaturization and sophistication of electronic devices, stable power delivery has become more critical than ever. This is especially true in sectors requiring high reliability, such as industrial automation and medical equipment, where power quality directly influences system performance and safety.
The importance of power supply systems continues to grow, driven by the expansion of IoT applications and data centers that demand uninterrupted and stable operation.
The Role of PLCs in Power Supply Control
PLCs act as automated power management systems for industrial equipment, ensuring safe and efficient operations through the programmed control of power states, voltage levels, and current parameters.
Here are the four key benefits of PLC-based control systems:
Compared to traditional relay-based systems, PLC installations require significantly less space, allowing for more compact control panel designs.
Their programmable nature enables quick system modifications and simplified maintenance procedures.
These features have led to widespread adoption across various industries, particularly where safe and efficient operations are vital.

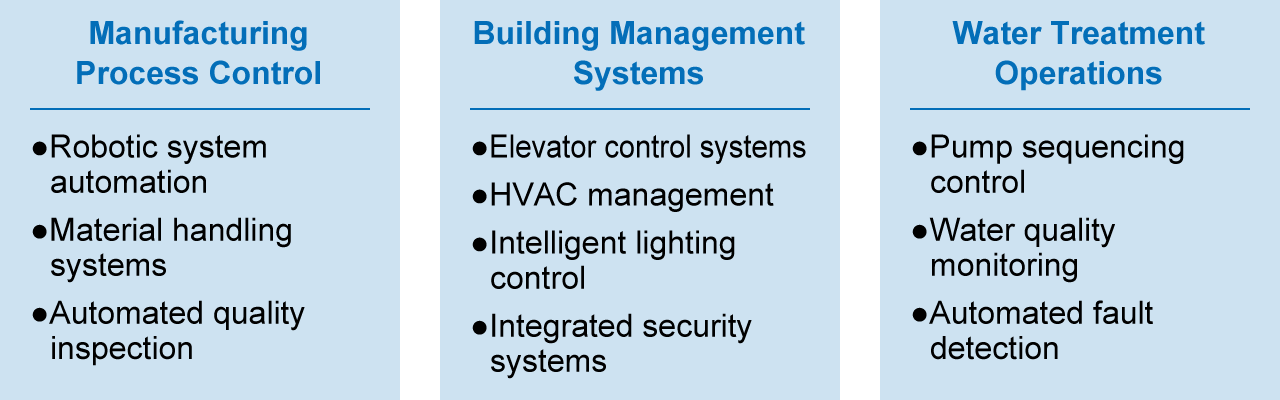

Applications of PLC Systems
PLCs excel at automating complex processes across diverse industrial sectors.
Here are some key applications:
PLCs coordinate process synchronization and provide comprehensive system control, ensuring efficient, high-quality production operations.
Power Supply Control via PLC analog signal
Analog control, implemented through PLC analog control modules, allows for precise, accurate, and responsive regulation of variable power supplies. This section explores the fundamentals and applications of analog control systems.
Principles of Analog Control
Analog control operates by managing continuous physical quantities using current (A) and voltage (V) signals. These control signals adhere to industry-standard ranges, such as 4-20 mA and 0-20 mA for current signals and 0-10 V for voltage signals. These continuously variable signals enable precise monitoring and control of physical parameters, including temperature, pressure, and voltage levels.
Practical Applications of Analog Signal Control
Analog signals are widely used in various control applications.
Voltage-based control (0-10 V) is a cost-effective implementation method but is best suited for short distances between control devices and equipment due to its sensitivity to noise.
Current-based control (4-20 mA) has become the industry standard for analog control systems. This method offers fail-safe operation-any reading of 0 mA immediately indicates system failures, such as wire breaks. It provides superior noise immunity and is suitable for longer distances, making it the preferred choice across many industries.
A common example is in water treatment facilities, where current-based analog signals (4-20 mA) are used to monitor and control water levels in storage tanks.

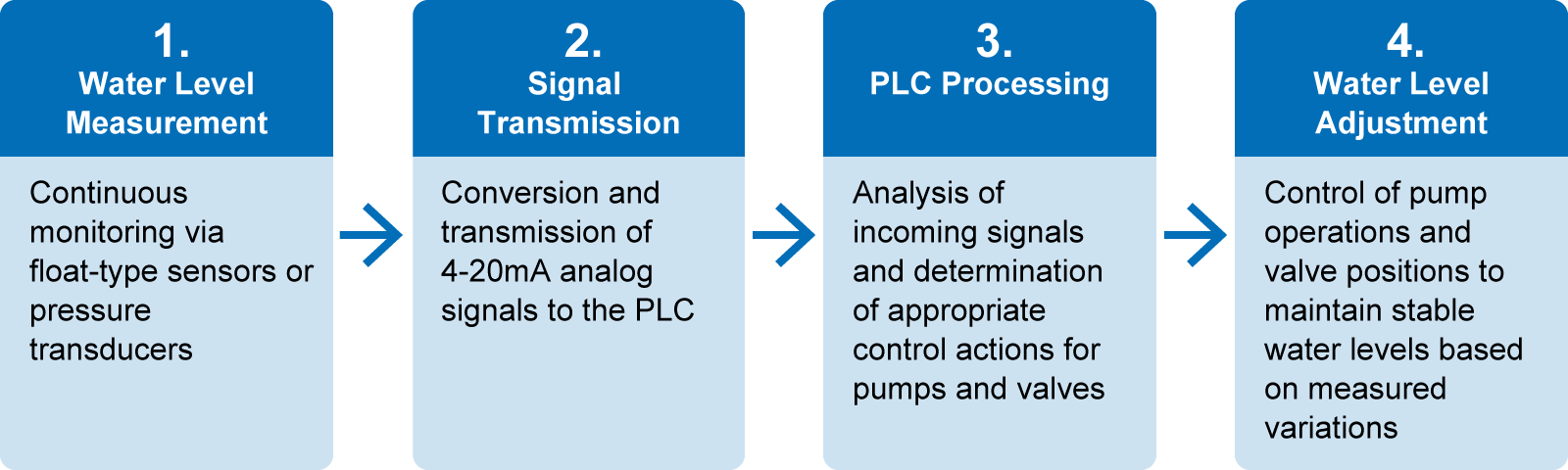

Below is a specific implementation example from a water treatment facility.
This real-time analog control system enables precise water level management, ensuring efficient facility operations.
Application Examples of Matsusada Precision Products
The RK Series DC variable power supplies combine a compact desktop design with powerful 1200W output capability, offering precise control over output voltage, output current, and power delivery duration. These units excel in applications that require fine output adjustments and accurate representation of physical phenomena.
Their versatility makes them ideal for a wide range of applications, from energy and environmental research to semiconductor manufacturing. The series supports various needs, from research and development activities to quality assurance testing and production line integration.
Power Supply Control via PLC Using RS-232C/RS-485 Serial Communications
Implementing PLC control through serial communication protocols like RS-232C or RS-485 requires three key elements: a thorough understanding of communication standards, proper configuration of communication parameters, and precise implementation of control programs. Additionally, PLCs must be equipped with suitable serial communication modules.
This section examines the characteristics of the RS-232C and RS-485 standards and highlights the advantages of serial communication systems.
Understanding RS-232C and RS-485 Standards
RS-232C and RS-485 are both serial communication protocols, each designed for different operational needs based on device connectivity, transmission distance, and noise immunity specifications.
RS-232C is a legacy standard optimized for short-distance, low-speed communications. Despite its age, it remains in use for short-range applications due to its simple implementation and cost-effectiveness. Historically, RS-232C has been the standard protocol for connecting computers to peripheral devices, such as printers and modems.
RS-485 was developed as an enhancement to RS-232C, addressing many of its predecessor's limitations. This standard is widely adopted in industrial applications that require long-distance, high-speed communication capabilities. Its robust performance makes it particularly suitable for industrial control systems, building automation networks, and data acquisition systems.
Features and Advantages of Serial Communication Power Supply Control
Comparative Analysis of RS-232C and RS-485 Standards
| Characteristics | RS-232C | RS-485 |
|---|---|---|
| Communication | Range 15 meters max | 1.2 kilometers |
| Noise Immunity | Limited | Excellent |
| Device Connectivity | Point-to-point | Up to 32 devices |
| Communication Speed | Lower | Higher |
| Key Advantages |
|
|
RS-232C has established itself as the standard choice for point-to-point, short-distance communications. Its long-standing presence in the industry ensures extensive backward compatibility and widespread device support.
RS-485, by contrast, excels in applications requiring long-distance transmission and multi-point connectivity. It is particularly valuable in industrial networks where real-time control is essential.
When combined with the MODBUS RTU protocol, RS-485 forms a robust communication system that is highly resistant to external noise and electromagnetic interference, making it ideal for industrial applications. RS-485 supports two communication methods: half-duplex (2-wire) and full-duplex (4-wire) transmission.
The 2-wire system offers a cost-effective solution for basic data exchange, such as transmitting sensor input signals to PLCs. It is suitable for simple, short-distance communications where budget is a consideration, though it does not support simultaneous transmission and reception.
The 4-wire system enables simultaneous bi-directional communication through separate transmission and reception lines. This full-duplex capability makes it the preferred choice for applications requiring real-time, high-speed, and reliable communication, such as robotic control systems, energy management systems, and process control in chemical plants.
It is important to note that the MODBUS protocol includes another variant, MODBUS ASCII, in addition to MODBUS RTU.
Application Examples of Matsusada Precision Products
Matsusada Precision's power supply technology plays a crucial role in high-precision X-ray inspection systems.
By integrating our high-voltage power supplies with the CO-OPT4-25 communication adapter for PLC or computer control, we enhance both safety and reliability while accelerating inspection processes and research and development cycles.
Application Examples of Matsusada Precision Products
Matsusada Precision's power supply technology plays a crucial role in high-precision X-ray inspection systems.
By integrating our high-voltage power supplies with the CO-OPT4-25 communication adapter for PLC or computer control, we enhance both safety and reliability while accelerating inspection processes and research and development cycles.
Power Supply Control via PLC Using CC-Link
Control & Communication Link (CC-Link) is an industrial communication standard designed for the efficient networking of control devices. Integrating PLCs with CC-Link technology allows for streamlined management and control of multiple devices through a single network.
This section explores CC-Link's distinctive features and provides practical examples of implementation.
Understanding CC-Link
CC-Link was developed by Mitsubishi Electric Corporation in the 1990s as an open-field network protocol, primarily targeting the FA sector.
| Protocol Name | CC-Link |
|---|---|
| Network Architecture | Master-Slave Configuration *1 |
| Device Capacity | Up to 64 slave devices |
| Data Transfer Rate | Maximum 10 mbps |
| Network Range | Up to 1,200 meters |
| Key Advantages |
|
CC-Link has evolved into an international standard, now managed by the CC-Link Association and supported by numerous global manufacturers.
*1 The master-slave architecture is a hierarchical control structure where the master device manages overall network control while slave devices execute instructions received from the master.
Features and Benefits of CC-Link Power Supply Control Systems
The table below outlines the key features and advantages of using CC-Link for power supply control:
| Feature | Advantages |
|---|---|
| High-Speed Communication | Enables rapid power control responses and enhances overall system responsiveness through high-speed data transmission capabilities. |
| Master-Slave Architecture | Simplifies system implementation and reduces installation costs by eliminating the need for complex slave device configuration. |
| System Scalability | Accommodates future system expansion with minimal additional investment, providing flexible growth options as operational needs evolve. |
| Communication Reliability | Delivers dependable real-time data transmission essential for precise power control applications. |
| Enhanced Maintainability | Minimizes system downtime during fault conditions and improves overall operational productivity. |
| Noise Immunity | Ensures stable power control through robust protection against electromagnetic interference common in industrial environments. |
| Cost Effectiveness | Reduces overall operational expenses through shortened installation times and decreased maintenance requirements. |
By using CC-Link, the number of control lines required between control panels and between control panels and operation panels is significantly reduced.
Matsusada Precision's CC-Link Integration
As a certified CC-Link Partner, Matsusada Precision designs and manufactures CC-Link-compatible products.
A notable example is the integration of our R4GT series DC power supplies for precision plating applications with our -LCk CC-Link interface module. This combination leverages advanced power supply technology to achieve precise current control and output, significantly improving plating quality in industrial applications.
Introduction to Power Supply Control via EtherCAT
Ethernet for control automation technology (EtherCAT) is a high-performance, industrial ethernet-based fieldbus system. This section explores EtherCAT's capabilities and its implementation in power control applications.
EtherCAT Overview and Features
EtherCAT was developed in 2003 by Beckhoff Automation of Germany and has since become an open industrial standard. It is widely adopted across various industrial applications, including manufacturing machinery, robotic systems, and machine tools worldwide.
This protocol stands out from traditional fieldbus systems like Profibus and DeviceNet due to its superior communication speeds, precise real-time performance, and advanced control system support. EtherCAT's architecture is specifically designed to leverage existing ethernet technology while maintaining compatibility with legacy fieldbus systems, making it a versatile solution for industrial automation applications.

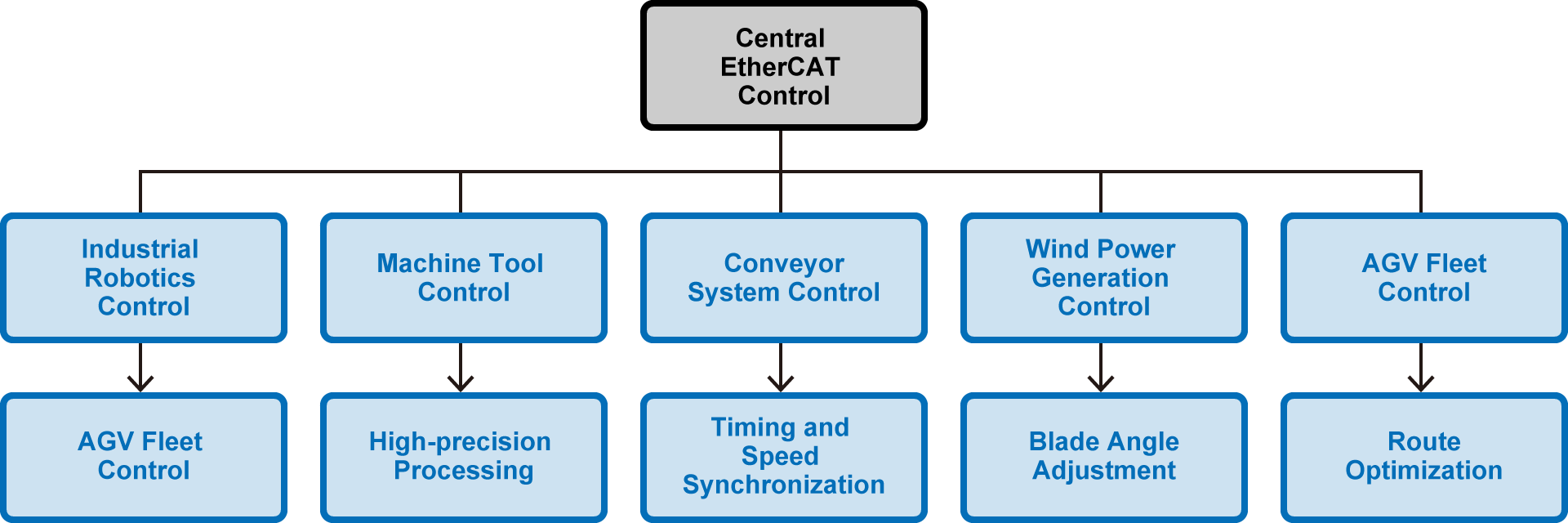

Examples of EtherCAT Power Control Applications
EtherCAT is used in various power control applications, including the following:
-
1.
Industrial Robot Control: Manages multiple actuators and sensors simultaneously, providing real-time data acquisition and feedback for precise robotic operations.
-
2.
CNC Machine Tool Control: Controls complex motion patterns in high-precision machining and 3D printing, ensuring accurate workpiece production.
-
3.
Conveyor System Control: Synchronizes speeds and timing across multiple conveyor sections, optimizing material handling in logistics and manufacturing environments.
-
4.
Wind Turbine Control: Enhances power generation efficiency through precise blade angle adjustments and real-time wind condition monitoring.
-
5.
Automated Guided Vehicle (AGV) Fleet Management: Automates material transport operations by coordinating multiple AGVs in factory and warehouse settings.
EtherCAT has become a leading protocol for precise and efficient control across diverse industrial sectors.
Matsusada Precision Applications
In semiconductor manufacturing, where clean environments and minimal process vibration are crucial, Matsusada Precision's power supply solutions play a vital role.
Our HECD series electrostatic chuck power supplies, combined with the -LEc ethernet interface, enable precise control of delicate wafer clamping and minimize particle contamination, thereby enhancing both product quality and manufacturing efficiency.
Introduction to Industrial Ethernet Control
Industrial ethernet is a specialized communication technology designed for manufacturing and process control environments.
This section explores the fundamental concepts and key features that distinguish industrial ethernet protocols.
What is Industrial Ethernet?
Industrial ethernet is a specialized adaptation of standard office ethernet protocols, optimized for industrial applications. This technology primarily serves automation and process control needs, facilitating factory network communications and production data transfer.
Beyond the previously discussed EtherCAT, three other major protocols dominate the industrial landscape:
| Features | Advantages | |
|---|---|---|
| PROFINET |
|
|
| EtherNet/IP |
|
|
| Modbus-TCP |
|
|
In recent years, the emergence of the Industrial Internet of Things (IIoT) and Industry 4.0 concepts has dramatically increased the demand for Industrial ethernet solutions. This technological evolution has enabled more advanced data analytics and remote monitoring capabilities, leading to the comprehensive optimization of production processes.
Features and Benefits of Industrial Ethernet Power Supply Control
Industrial ethernet control is known for its real-time performance, achieved through high-speed communication and resilience against temperature changes and electrical noise.
It ensures stable operation and efficient energy management, even in challenging factory environments. Additionally, the network's scalability allows easy accommodation of large-scale systems, leading to enhanced production efficiency, cost reduction, and improved safety.
Conclusion
Throughout this guide, we have provided detailed examples of PLC-based power supply control systems.
PLCs function as automated control devices that ensure efficient operations and enable early problem detection, playing a crucial role in our daily lives.
PLC control can be implemented through several methods:
- Analog Control
- RS-232C/RS-485
- CC-Link
- EtherCAT
These control methods are integral to the future of industrial development.
Matsusada Precision is dedicated to advancing manufacturing across various sectors, including semiconductor production, energy and environmental systems, medical equipment, and EV battery development.
Our extensive product line includes power supply units essential for research, development, and manufacturing processes, along with specialized units designed for seamless PLC integration.
We offer product demonstrations for those interested in implementing our solutions.
Please feel free to contact us with any questions regarding process control or power supply applications.
