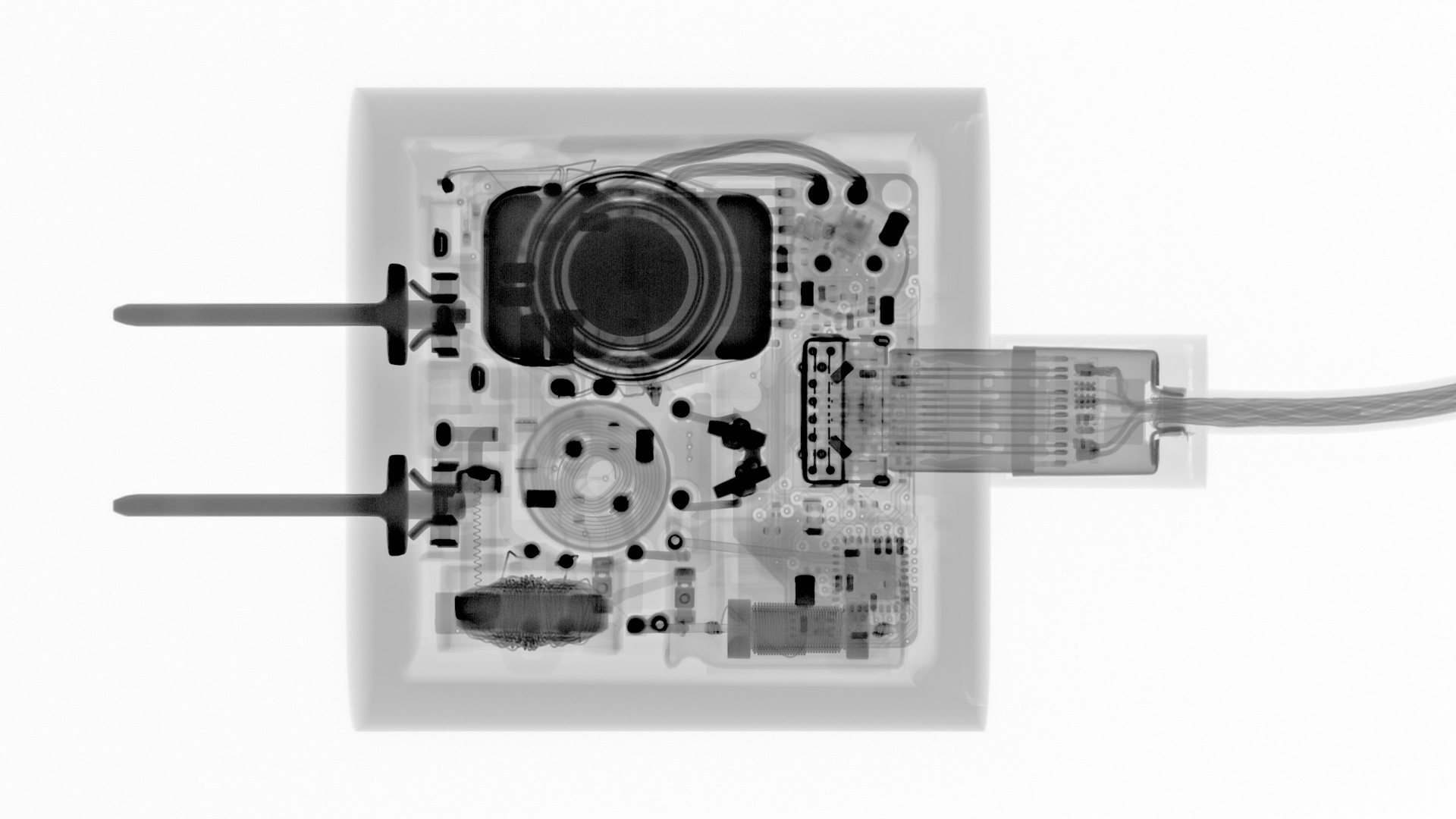

This application note presents a non-destructive X-ray inspection of an 18 W USB-PD charger (Apple A1720). The high-resolution image clearly reveals the internal component layout, including the AC input contacts, transformer structure, and the USB-C connector interface.
Matsusada Precision's X-ray inspection systems are designed to capture fine details within high-density power electronics, making them ideal for quality assurance and failure analysis.
